Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm

China Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm supplier
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm supplier Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm supplier Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm supplier Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm supplier

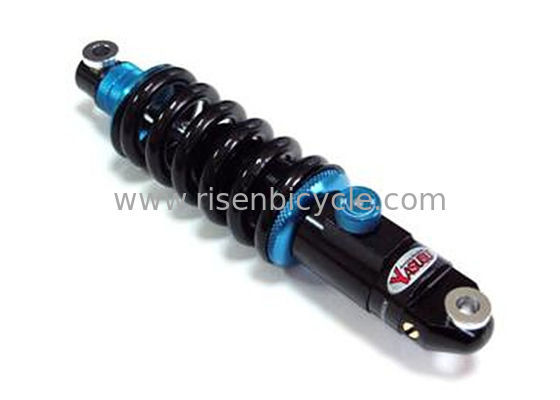

Large Image :  Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm

Product Details:

Place of Origin: TAIWAN
Brand Name: SENSHOX
Certification: ISO9001,3C
Model Number: BNCP-601

Payment & Shipping Terms:

Minimum Order Quantity: 200 units
Packaging Details: Carton
Delivery Time: 45 days after order confirmation
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 50000 units/month
Contact Now
Detailed Product Description
C/C Length: 175-230mm Travel: 25-50mm
Spring Rate: 200-1200lbs Shock Body: AL6061-T6 CNC,Hard Anodized
Adjustment: High Speed Compression Damper, Rebound, & Preload Adjustment Damper: Hydraulic With Nitrogen
Warranty: 1 Year Test: Reliability Test Passed
Application: Powered Wheelchair, FSE/FSC Cart Spring: Coil Spring
Lockout: Yes

Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mmPowered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm

Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm




MODEL BNCP-601
SHOCK BODY AL6061-T6 CNC, HARD-ANODIZED
BUSHING AS PER REQUIREMENT
SPRING RATE 200-1200LBS,COIL STEEL SPRING
LENGTH 175-230MM.(CUSTOMIZED)
TRAVEL 20-50MM
WEIGHT 0.375KG(W/O SPRING)
TYPE SUSPENSION OF POWERED WHEELCHAIR, FSC/FSE CART ETC
ADJUSTMENT HIGH-SPEED COMPRESSION/REBOUND/PRELOAD ADJUSTMENT
DAMPER HYDRAULIC WITH NITROGEN CHARGED
FEATURES PEFORMANCE SHOCK ABSORBER WITH WIDE RANGE OF DAMPER ADJUSTMENT, NITROGEN CHARGED.


Lockout: Yes

Feature: High Quality Spring Steel(Japan imported or Bao Steel), lasting not easy to fatigue.

Virtual Lockout
Nitrogen charged
Externally adjustable velocity sensitive damping compression and rebound

Preload adjustment



Application: suspension of Powered wheelchair, Foruma Student Racing Cart(FASE,FASC)



Risen Bicycle is a professional manufacturer and supplier of wheelchair spring shocks in China for many years. We can customize different sizes of spring shocks for customers. Our main market are in Usa, Canada and Europe and etc. We can also make according to your drawings.
