Product Details:
Payment & Shipping Terms:
|
| Product: | Bafang Mid-Drive Electric Bike Frameset | Material: | AL6061, T4&T6 Heat Treatment |
|---|---|---|---|
| Motor: | Bafang M510/M600 , 250/500/750W Mid-Drive Motor | Downtube: | Integrated Downtube |
| Battery Pack: | 52 Cells In Downtube | Size: | 16.5", 18.5", 20" |
| Dropout: | 148x12 Thru-axle | Max Tire: | 29x2.40 Or 27.5x2.80 |
| Fork Applicable: | 120-160mm Fork | OEM: | Acceptable |
| MOQ: | 20 Units |

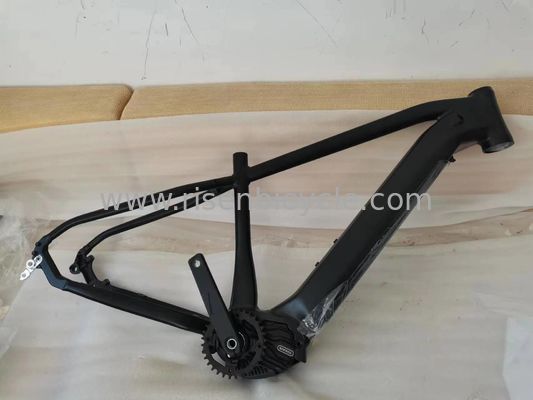

Bafang Mid-drive E-Bike Conversion Kit 27.5er boost Emtb Frameset
Features
27.5" boost Electric Enduro Hardtail Bike Frame
Applicable: Bafang M510/m600/m560 motor , and integrated 52 cells battery pack
Riding Style: Trail/Enduro with 67 ht degree.
Fork Applicable: 120-160mm Travel
All Popular Sizes are available
OEM orders are acceptable
Technical Data:
| Product | Bafang Mid-Drive Electric Bike Frame kit emtb Conversion |
| Model | LDE6025 |
| Material: | Aluminum Alloy 6061-T6, T4 &T6 |
| Motor Applicable | Bafang M510/600/560, 250-500-750W Mid-Drive Motor |
| Downtube | Integrated |
| Battery Pack | 52X18650/ 40X21700 |
| Battery Capacity | 48v/672wah, or 36v/720wah |
| Wheel Size | 29er/27.5er boost |
| Headtube | Tapered(Upper 1-1/8",Lower 1/2") |
| Seatpost | 30.9mm |
| Headtube | Tapered (44/56) |
| Headtube Angle | 67 degree |
| Fork Applicable | 120-160mm Travel |
| Dropout | 148x12mm thru-axle |
| Max. Tire | 29x2.35/27.5x2.80 |
| Brake | Disc( Post Mount) |
| Size: | 16.5", 18.5", 20" |
| Frame weight | 3.3kg(18.5") |
| Use | Electric Mountain Bike, E-bike |
| Painting | Raw Materials, Matte Black or other colors |
| OEM/ODM | Acceptable |
| Warranty | 2 years |
Terms & Conditions:
Packing: 4 units/Carton
Lead time: 60 days after order confirmation.
Payment Terms: 50% deposit and balance to be paid before shipment.
Samples: Available.
Warranty: 2 years
