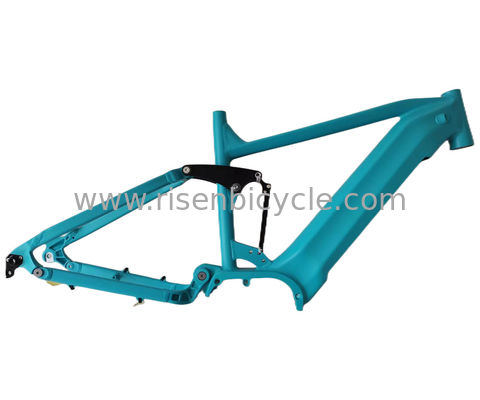

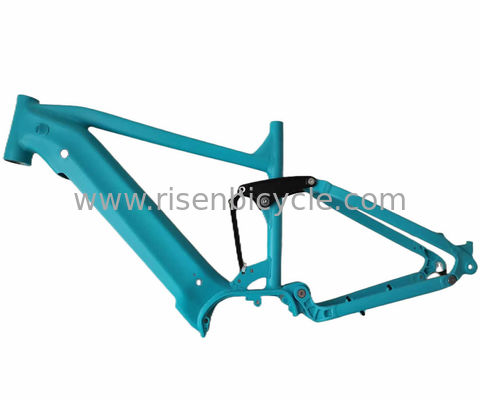

Bafang 1000w Electric Full Suspension Frame M620 Aluminum E-bike Enduro Emtb
SME-02 is 27.5" Boost Full Suspension Frame for Am/Enduro ride assisted with robust motor power, 1000w Bafang G510 mid-drive system. Easily going up slopes without pushing hard.
Features:
1)Fits with Bafang Max 1000w Mid-drive system, Hailong Big-Capacity 80 cells battery case.
2)27.5"/29er Boost Full Suspension E-bike Frame
3)Wheel travel 150mm, shock size: 190x50mm
4)All popuplar sizes avaiable 16", 18", 20"
5)Rear Dropout: 148x12 thru-axle with max tire 27.5x3.00 or 29x2.50
Sample order 20, 30, 50 units order can be acceptable
Technica Data:
| Model | SME-01 |
| Material | AL6061 Aluminum Alloy, T4 and T6 heat treatment |
| Welding | TIG+FLAT welding |
| Wheel Size | 27.5"(650B) Boost/ 29ER |
| Motor Applicable | BAFANG Mid-drive Motor G510.1000W |
| Battery Case | 80 cells 18650, 56 cells 21700 (52v/20ah 1040wah) |
| Wheel Travel | 150mm |
| Shock Size | 190x50mm |
| Fork recommended | 160mm travel |
| Rear Dropout | 148x12mm thru-axle |
| Max. Tire | 27.5x3.00 or 29x2.50 |
| Headset | Tapered(44/56mm) |
| Headtube Angle | 66 degree |
| Seatpost | 31.6mm |
| Brake | Disc(post mount) |
| Pivot Bearings | Premium Sealed Bearing Waterproof. |
| Routing | Internal Cable Routing. |
| Finish | Raw Materials,Matte Black or customized painting |
| OEM/ODM | Acceptable |
| Finish | Raw Materials, Matte Black or customized painting |
| Sizes | All Popular Sizes are available |
| Quantity Standard | EN, ISO9001 |
| Warranty | 3 years |
Terms and conditions:
Warranty: 3 years/ 36 months
Packing: 2 units/carton
Lead time: within 2 months after order confirmation.
Payment: T/T in advance or L/C at sight
Quality Stanard: EN4210, ISO9001
