Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy 6061 | Model: | E6010S |
|---|---|---|---|
| Wheel: | 27.5er | Motor: | Bafang Max Mid-drive System |
| Battery: | External Lithium Battery Box | Max. Tire: | 27.5er |
| Frame Travel: | 150 Mm | Shock: | 190x50mm |
| Dropout: | 142x12mm | Finish: | UD Matt/Clear Coating |
| Headset: | Tapered (1-1/8" To 1-1/2") | Brake: | Disc(Post Mount) |

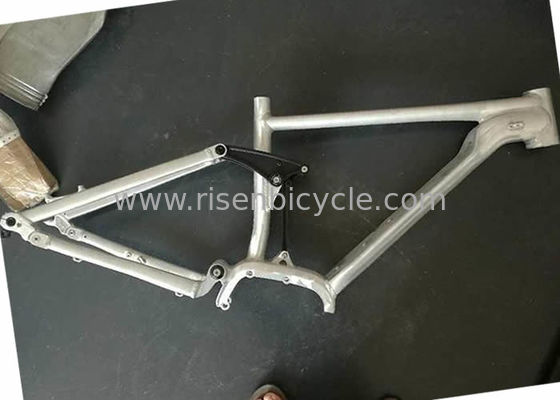

Bafang 250/350w Aluminum Full Suspension Electric Bike Frame 27.5er Boost E-bike
Features:
1) Motor Applicable: Bafang M330 250/350W mid-drive Motor
2)Patented Design with open mold for OEM. We can process with customer's painting design and logo.
3)Dropout 142x12mm Wheel Size 27.5erx2.40
4)Bafang Max Drive system is compatible for the frame. 36/48v, 250w/350w
5)Available sizes: 16"/18"/20" optional.
6)OEM/ODM orders are acceptable
7)MOQ: 20 units
Technical Data:
| Product | 250/350w Aluminum Full Suspension Ebike Frame |
| Model: | E6025S |
| Material | Aluminum Alloy 6061 |
| Motor | Bafang Max G330 Mid-drive sytem, 250/350W |
| Wheel Size | 27.5er |
| Tire max. | 27.5x2.40 |
| Frame Travel | 150mm |
| Shock Size | 190x50mm |
| Headset | Tapered (1-1/8" to 1-1/2") |
| Brake | Disc(post mount) |
| Rear Dropout | 142x12mm thru-axle |
| Sizes available | 16"/18"/20" |
| Pivot Bearings | Premium Sealed bearings |
| Finish | Raw Materials, Matte Black or Customized Painting |
| Warranty | 2 years |
| OEM | Acceptable |
