| MOQ: | 100 units |
| Standard Packaging: | Carton |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 30000 units/unit |

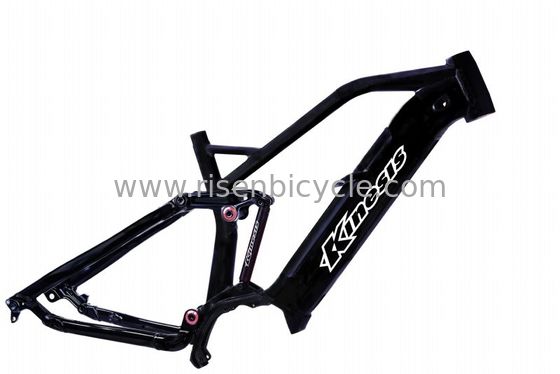

27.5er Boost AM Full Suspension Electric Bike Frame Bosch Ebike Integrated battery
Feature:
Type: Full Suspension Electric Bike Frame, ebike frame
27.5" Plus Suspension Mountain Mtb Frame
Build-in battery box integrated with lower tube,(battery inside the lower tube)
Bosch CX Brushless mid-drive sytem 500w power, Lithium battery cells
148 x12 dropout with max tire 27.5"x3.0 or 29"x2.35.
Usa. Enduro premium bearings for Pivot joints.
Cable inner routing and hidden disc brake make the complete very and save problems.
Trail/Am riding style with 140mm rear wheel travel, and it shock length x travel is 200x57mm.
Electric motor assisted saves the labour to push hard onto slopes.
Compatible with Shimano or Sram 11speed System. 38T.
Technical Data:
| Model | I8625 |
| Style | Full Suspension ebike frame,Electric Bike Frame |
| Material | Aluminum Alloy 6061 |
| Wheel | Boost 27.5 Plus/ 29er |
| Max. tire | 27.5"x3.0 or 29"x2.35 |
| Motor | Bosch CX mid-drive system, brushless, 500w |
| Battery Box | Built-in, integrated inside lower tube |
| Seatpost | 31.6 mm |
| Headtube Angle | 66 degree |
| Wheel Travel | 140 mm |
| Shock Size | 200x 57mm |
| Headtube | Tapered(1-1/8" upper, 1-1/2" lower) |
| Routing | Cable inner routing |
| Pivot bearing | USA. Enduro Premium bearings |
| Riding Style | Electric Trail/Am mountain bike |
| OEM | acceptable |
| ODM | Acceptable |
| Painting | raw materials or as per customer's painting design. |
FAQ:
What's your minimum order?
80 units.
Can I buy sample for bulk order?
Yes. We accept sample order before bulk order
What is the delivery time?
Delivery time
usually it is about 90-120 days.
Why so long?
Frame tubes production needs a month, frame processing need over 1 month, and t4-t6 heat treatment, and painting needs time.
Can you make logo for us?
Yes. Decal stickers we can design for you. that needs mold fees for stickers.
Can the frame fit with bafang or Shimano?
No, the motor bracket is made for Bosch Cx. It can not fit Shimano or Bafang.
We have other model for Shimano E8000 with built-in battery box.
How to make payment?
Payment is by T/T in advance. 50% deposit and balance to be paid before shipment.
