Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Body, OD=24mm | Name: | Bike Shock Absorber |
|---|---|---|---|
| Shaft: | Steel Anodized, OD=10mm | Color: | Black, Silver |
| Length: | 90-180mm | Travel: | 11-54mm |
| Spring Rate: | 250-2000lbs | Hole Diameter: | ID=8mm, Width According To Request |
| Damper: | Friction | Spring: | Coil Spring |
| Max. Working Weight: | 2000kg | Application: | Mountain Bikes,electric Bikes And Other Bicycle Shock-absorbing |

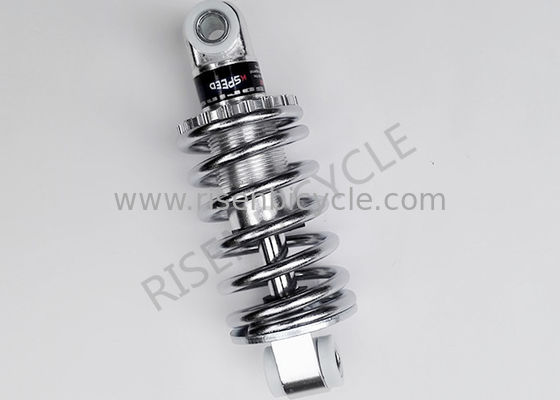

Mountain Bike Rear Shock Coil Spring Rear Shock Suspension 1000lbs 90-180mm Mtb Damper
258 has 24mm CNC alloy Shock Body and 10mm chromed shaft, ituses a traditional spring for simple absorption of shock in rear suspension. Preload is set from the collar ring and the axle is milled and forged.
Technical Data:
| Product | Mountain Bike Rear Shock, Coil Spring Rear Shock |
| Model | 258 |
| Material | Body AL6061-T6,CNC-machined |
| Body OD | 24mm |
| Shaft OD | 10mm, steel |
| Adjust | Preload |
| Damper | Friction |
| Length | 90-180mm |
| Travel | 11-54mm |
| Spring Rate | 250-2000lbs |
| Weight | 155-236g(w/o spring) |
| Intented use | mountain bikes,electric bikes and other bicycle shock-absorbing |
| Name | Bike Rear Shock Absorber |
| Color | Silver, Black |
Attention:
Please make sure that the spring nut has been against the spring before riding
