Product Details:
Payment & Shipping Terms:
|
| Motor Type: | DC Brushless Mid-Drive Motor | Rated Power: | 500 Watts |
|---|---|---|---|
| Voltage: | 43v, 48v | Max. Torque: | 120 N.m |
| Certificate: | CE/EN14766/Rohs | Weight: | 3.7Kg |
| Rated Rotation: | 115 +-6 Rpm | Use: | Electric Bike Motor |

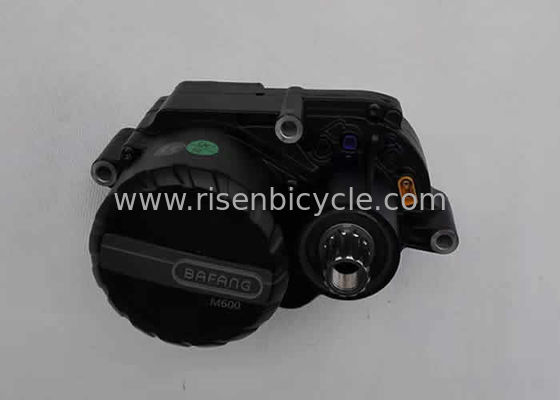

Bafang Mid-Drive Motor M600 G521 500W of Electric Bike DC Brushless 120N.m
Advantages:
High level Middle motor for high level E-MTB and Speed MTB
1,Good driveability;
2,Torque sensor integrated;
3,Front two speeds derailleur compatability 32/44T;
4,Small Q factor 177mm for single and double chainring;
5,Short RC compatability,≤450mm for hardtail and full suspenssion;
6,Big design room for E-Bike construction.
Technical Data:
| Product | DC, Brushless Mid-Drive Motor for electric Bike |
| Brand | Bafang |
| Model | M600 (G521) |
| Position | Centre |
| Rated Power | 43v, 48v |
| Rated Power | 500w |
| Rated Efficiency | ≥80% |
| Front ChainRing | 32T, 40T |
| Max. Torque | 120 N.m |
| Rated Rotation | 115±6 rpm |
| Weight | 3.7 kg |
| Interier mounted Sensor | Servo Sensor, Speed Sensor, Temperature Sensor |
| Level of Dustproof/Waterproof | IP66 |
| Application Surrounding | -20℃～+55℃ |
| Quality Approval | CE/EN15766/Rohs |
| Use | Ebike Motor |
| Accessories | Display, Crankset, Motor Case, bash plate,cables, screws included |
